云效跨账号迁移
背景
由于业务调整或组织架构变更，源阿里云账号将不再继续使用。为了确保业务连续性和数据完整性，需要将源账号下的所有云产品及其相关数据完整、安全地迁移到目标账号。由于云效（DevOps平台）无法直接通过实例划拨至目标账号，因此需要对云效中的数据进行迁移。
创建企业

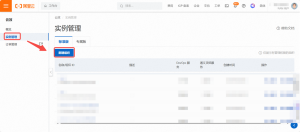

在目标账号上点击https://devops.console.aliyun.com/organizations/standard此链接，进入云效控制台界面，点击“新建组织”按钮。

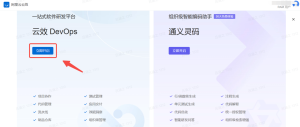

选择“云效DevOps”点击“立即开启”按钮。

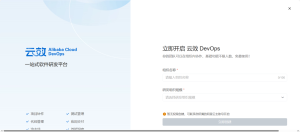

根据原账号云效，填写“组织名称”和“研发组织规模”，填写完成后点击“立即创建”按钮，完成云效企业的创建。
新建项目

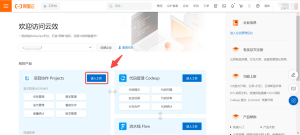

进入刚新建企业的控制台后，点击“项目写作 Projects”旁的“进入工作”按钮。

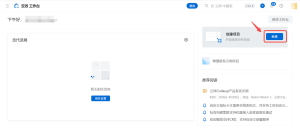

点击“新建”按钮，创建项目。

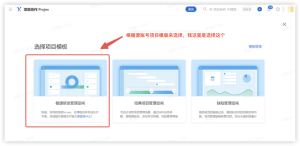

根据原账号项目类型，选择对应的项目模板。

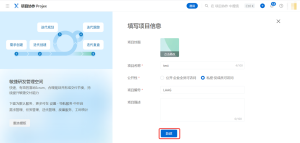

根据源账号项目信息进行填写，填写完成后点击“新建”按钮。

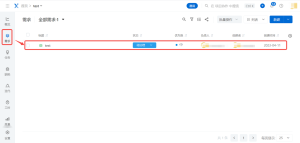

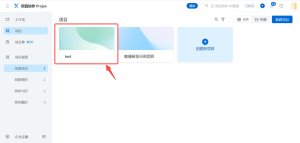

新建完成后的项目如下图所示：
迁移需求
源账号导出需求

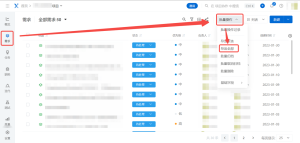

在源账号需求界面，点击“批量操作”，在下拉菜单中单击“导出全部”。
全选所有要导出的属性，完成后点击“开始导出”按钮。

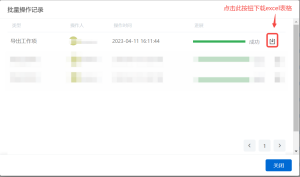

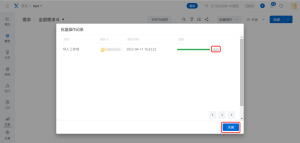

在跳转后的“批量操作记录”界面，等待“进展”的进度条显示成功后，点击右边的“下载”图表按钮，下载数据文件。

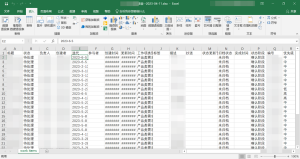

需求数据表格打开后如下图所示：
目标账号导入需求

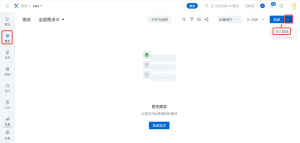

在目标账号的需求界面右上角，点击“导入数据”按钮。

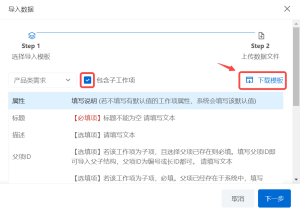

选中“包含子工作项”后，点击“下载模板”按钮。
将源账号导出的数据，根据导入模板的格式，写入到该excel表格里。

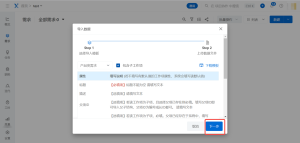

注意：负责人必须为当前企业已存在的用户名称，迭代为当前项目已创建的迭代，填写不存在的信息会导致导入报错 返回到导入数据界面中，继续点击“下一步”按钮。

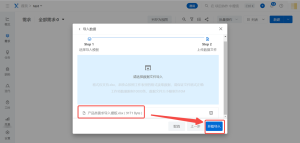

将刚填写完数据的导入模板上传上去，完成后点击“开始导入”按钮。
直到“导入工作项”显示为成功，则表示需求数据导入完成。
检查需求数据是否跟源账号上的数据一致。
迁移任务
源账号导出任务

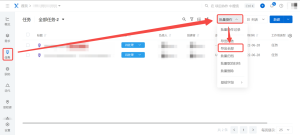

在源账号任务界面，点击“批量操作”，在下拉菜单中单击“导出全部”。

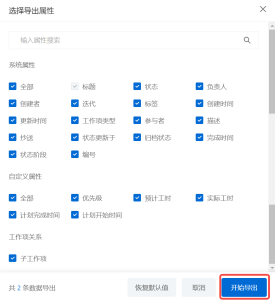

全选所有要导出的属性，完成后点击“开始导出”按钮。
查看导出的任务数据，如下图所示：
目标账号导入任务

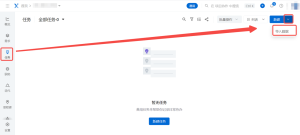

在目标账号的任务界面右上角，点击“导入数据”按钮。

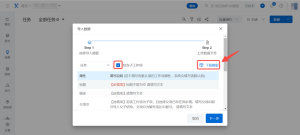

选中“包含子工作项”后，点击“下载模板”按钮。
将源账号导出的数据，根据导入模板的格式，写入到该excel表格里。

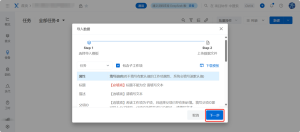

和迁移需求一样，点击“下一步”按钮，将任务数据导入到目标账号中。
迁移代码组、代码仓库、迭代
代码和迭代无法像需求和任务一样批量导出导入，为了提高效率和准确性，我们采用代码化方式批量迁移代码组、代码仓库和迭代，避免手动操作的费时费力及潜在错误。
获取组织ID

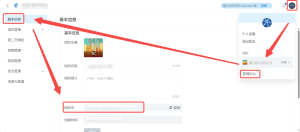

代码里需要用到“组织ID”，点击头像下拉菜单里的“管理后台”按钮，在“基本信息”页面即可看到“组织ID”。
获取企业空间ID

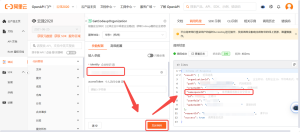

代码里需要用到“企业空间ID”，点击https://next.api.aliyun.com/api/devops/2021-06-25/GetCodeupOrganization此链接，在“identity 企业标识”输入框内输入“组织ID”，完成后点击“发起调用”按钮。在左侧“调用结果”页面可以看到“namespaceId”，即为企业空间ID。
获取个人访问令牌

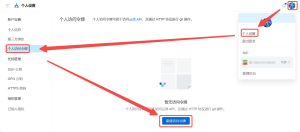

点击头像，在下拉菜单中点击“个人设置”，进入个人设置界面，选择“个人访问令牌”，点击“创建访问令牌”按钮。

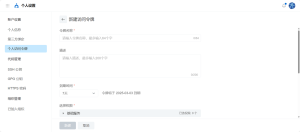

输入“令牌名称”，选择到期时间，按需选择权限。代码管理权限必选，后续要用它进行代码仓库数据导入操作。完成上述配置后，点击“新建”按钮创建个人访问令牌。
执行代码批量迁移
运行“源账号导出代码”，会print输出代码组、代码仓库和迭代的信息，运行“目标账号导入代码”时按代码提示输入代码组、代码仓库和迭代的信息，即可完成导入。执行前请在测试环境运行测试！！！
源账号导出代码 Python
# -*- coding: utf-8 -*-
# This file is auto-generated, don’t edit it. Thanks.
import sys,time
from typing import List
from alibabacloud_devops20210625.client import Client as devops20210625Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_devops20210625 import models as devops_20210625_models
from alibabacloud_tea_util import models as util_models
from alibabacloud_tea_util.client import Client as UtilClient
ak=”源账号AK”
sk=”源账号SK”
organization_id=’源账号组织ID’
parent_id= 源账号企业空间ID
class Sample:
def __init__(self):
pass@staticmethod
def create_client(
access_key_id: str,
access_key_secret: str,
) -> devops20210625Client:
config = open_api_models.Config(access_key_id=ak,access_key_secret=sk)
config.endpoint = f’devops.cn-hangzhou.aliyuncs.com’
return devops20210625Client(config)#导出代码组
@staticmethod
def ListGroupMember(
args: List[str],
) -> None:
organization_id = args[0]
groupId = args[1]
User_list=[]
client = Sample.create_client(ak, sk)
list_group_member_request = devops_20210625_models.ListGroupMemberRequest(organization_id=organization_id)
runtime = util_models.RuntimeOptions()
headers = {}
Users = client.list_group_member_with_options(groupId, list_group_member_request, headers,runtime).body.result
for User in Users:
User_dic={}
User_dic[“name”]=User.name
User_dic[“access_level”] = User.access_level
User_list.append(User_dic)
return User_list@staticmethod
def ListRepositoryGroups(
args: List[str],
) -> None:
organization_id=args[0]
parent_id=args[1]
ListRepositoryGroups_list=[]
client = Sample.create_client(ak, sk)
list_repository_groups_request = devops_20210625_models.ListRepositoryGroupsRequest(organization_id=organization_id,parent_id=parent_id,page_size=100)
runtime = util_models.RuntimeOptions()
headers = {}
ListRepositoryGroups=client.list_repository_groups_with_options(list_repository_groups_request, headers, runtime).body.result
for RepositoryGroups in ListRepositoryGroups:
ListRepositoryGroup_dic = {}
ListRepositoryGroup_dic[“id”] = RepositoryGroups.id
ListRepositoryGroup_dic[“name”] =RepositoryGroups.name
ListRepositoryGroup_dic[“description”] =RepositoryGroups.description
ListRepositoryGroup_dic[“path”] = RepositoryGroups.path
ListRepositoryGroup_dic[“visibility_level”] = RepositoryGroups.visibility_level
User_list=Sample.ListGroupMember([organization_id, str(RepositoryGroups.id)])
ListRepositoryGroup_dic[“user_list”] = User_list
ListRepositoryGroups_list.append(ListRepositoryGroup_dic)
return ListRepositoryGroups_list#获取代码仓库信息
@staticmethod
def GetRepositorymain(
args: List[str],
) -> None:
organization_id = args[0]
identity = args[1]
client = Sample.create_client(ak, sk)
get_repository_request = devops_20210625_models.GetRepositoryRequest(organization_id=organization_id,identity=identity)
runtime = util_models.RuntimeOptions()
headers = {}
http_url_to_repository = client.get_repository_with_options(get_repository_request, headers,runtime).body.repository.http_url_to_repository
return http_url_to_repository
@staticmethod
def ListRepositoriesmain(
args: List[str],
) -> None:
organization_id = args[0]
client = Sample.create_client(ak, sk)
list_repositories_request = devops_20210625_models.ListRepositoriesRequest(organization_id=organization_id,per_page=100)
runtime = util_models.RuntimeOptions()
headers = {}
ListRepositories = client.list_repositories_with_options(list_repositories_request, headers,runtime).body.result
repository_list = []
for Repository in ListRepositories:
repository_dic = {}
repository_dic[“name”] = Repository.name
repository_dic[“path”] = Repository.path
repository_dic[“namespace_id”] = Repository.namespace_id
repository_dic[“description”] = Repository.description
repository_dic[“visibility_level”] = Repository.visibility_level
http_url_to_repository = Sample.GetRepositorymain([organization_id, Repository.id])
repository_dic[“import_url”] = http_url_to_repository
repository_list.append(repository_dic)
return repository_list# 导出迭代信息
@staticmethod
def ListProjectsmain(
args: List[str],
) -> None:
organization_id = args[0]
client = Sample.create_client(ak, sk)
list_projects_request = devops_20210625_models.ListProjectsRequest(category=’Project’)
runtime = util_models.RuntimeOptions()
headers = {}
projects = client.list_projects_with_options(organization_id, list_projects_request, headers,runtime).body.projects
projects_info = {}
for project in projects:
identifier = project.identifier
name = project.name
projects_info[name] = identifier
return projects_info
@staticmethod
def ListSprintsmain(
args: List[str],
) -> None:
organization_id = args[0]
space_identifier = args[1]
client = Sample.create_client(ak, sk)
list_sprints_request = devops_20210625_models.ListSprintsRequest(space_identifier=space_identifier,space_type=’Project’,max_results=200)
runtime = util_models.RuntimeOptions()
headers = {}
sprints = client.list_sprints_with_options(organization_id, list_sprints_request, headers,runtime).body.sprints
sprint_list = []
for sprint in sprints:
sprint_dic = {}
sprint_dic[“name”] = sprint.name
sprint_dic[“start_date”] = time.strftime(‘%Y-%m-%d’, time.localtime(sprint.start_date / 1000))
sprint_dic[“end_date”] = time.strftime(‘%Y-%m-%d’, time.localtime(sprint.end_date / 1000))
sprint_list.append(sprint_dic)
return sprint_listif __name__ == ‘__main__’:
#获取代码组信息
ListRepositoryGroups_list=Sample.ListRepositoryGroups([organization_id,parent_id])
print(“代码组信息:”+str(ListRepositoryGroups_list))#获取代码仓库信息
repository_list = Sample.ListRepositoriesmain([organization_id, ])
print(“代码仓库信息：”+str(repository_list))#获取迭代信息
while True:
projects_info = Sample.ListProjectsmain([organization_id, ])
print(“项目名称和项目ID的对应关系”+str(projects_info))
identifier = input(“请输入要导出的迭代是哪个项目的ID(不需要导出请输入no)：”)
if identifier==”no”:
break
sprint_list = Sample.ListSprintsmain([organization_id, identifier])
print(“迭代的信息：”+str(sprint_list))目标账号导入代码 Python
# -*- coding: utf-8 -*-
# This file is auto-generated, don’t edit it. Thanks.
from typing import List
from alibabacloud_devops20210625.client import Client as devops20210625Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_devops20210625 import models as devops_20210625_models
from alibabacloud_tea_util import models as util_models
from alibabacloud_tea_util.client import Client as UtilClient
import ast
ak=”目标账号AK”
sk=”目标账号SK”
organization_id=”目标账号组织ID”
namespaceId=”目标账号企业空间ID”
import_account=”目标账号个人访问令牌名称”
import_token=”目标账号个人访问令牌token”
class Sample:
def __init__(self):
pass@staticmethod
def create_client(
access_key_id: str,
access_key_secret: str,
) -> devops20210625Client:
config = open_api_models.Config(access_key_id=ak,access_key_secret=sk)
config.endpoint = f’devops.cn-hangzhou.aliyuncs.com’
return devops20210625Client(config)#导入代码组
@staticmethod
def CreateRepositoryGroupmain(
args: List[str],
) -> None:
organization_id = args[0]
name = args[1]
path = args[2]
visibility_level = args[3]
namespaceId = args[4]
description = args[5]
client = Sample.create_client(ak,sk)
create_repository_group_request = devops_20210625_models.CreateRepositoryGroupRequest(organization_id=organization_id,name=name,path=path,visibility_level=visibility_level,parent_id=namespaceId,description=description)
runtime = util_models.RuntimeOptions()
headers = {}
print(client.create_repository_group_with_options(create_repository_group_request, headers, runtime))#获取源代码组ID与目标代码组ID的对应关系
@staticmethod
def ListRepositoryGroups(
args: List[str],
) -> None:
organization_id = args[0]
parent_id = args[1]
ListRepositoryGroups_list = []
client = Sample.create_client(ak,sk)
list_repository_groups_request = devops_20210625_models.ListRepositoryGroupsRequest(organization_id=organization_id,parent_id=parent_id,page_size=100)
runtime = util_models.RuntimeOptions()
headers = {}
ListRepositoryGroups = client.list_repository_groups_with_options(list_repository_groups_request, headers,runtime).body.result
for RepositoryGroups in ListRepositoryGroups:
ListRepositoryGroup_dic = {}
ListRepositoryGroup_dic[“id”] = RepositoryGroups.id
ListRepositoryGroup_dic[“name”] = RepositoryGroups.name
ListRepositoryGroup_dic[“description”] = RepositoryGroups.description
ListRepositoryGroup_dic[“path”] = RepositoryGroups.path
ListRepositoryGroup_dic[“visibility_level”] = RepositoryGroups.visibility_level
ListRepositoryGroups_list.append(ListRepositoryGroup_dic)
return ListRepositoryGroups_list#导入代码仓库
@staticmethod
def CreateRepositorymain(
args: List[str],
) -> None:
organization_id = args[0]
name = args[1]
path = args[2]
namespace_id = args[3]
description = args[4]
visibility_level = args[5]
import_url = args[6]
import_account = args[7]
import_token = args[8]
client = Sample.create_client(ak,sk)
create_repository_request = devops_20210625_models.CreateRepositoryRequest(organization_id=organization_id,name=name,path=path,namespace_id=namespace_id,description=description,visibility_level=visibility_level,import_url=import_url,import_account=import_account,import_token=import_token)
runtime = util_models.RuntimeOptions()
headers = {}
print(client.create_repository_with_options(create_repository_request, headers, runtime))# 得到项目名称和项目ID的对应关系
@staticmethod
def ListProjectsmain(
args: List[str],
) -> None:
organization_id = args[0]
client = Sample.create_client(ak,sk)
list_projects_request = devops_20210625_models.ListProjectsRequest(category=’Project’)
runtime = util_models.RuntimeOptions()
headers = {}
projects = client.list_projects_with_options(organization_id, list_projects_request, headers,runtime).body.projects
projects_info = {}
for project in projects:
identifier = project.identifier
name = project.name
projects_info[name] = identifier
return projects_info#创建迭代
@staticmethod
def CreateSprintmain(
args: List[str],
) -> None:
organization_id=args[0]
identifier=args[1]
FROM_diedai=args[2]
staff_id=args[3]
client = Sample.create_client(ak,sk)
create_sprint_request = devops_20210625_models.CreateSprintRequest(
staff_ids=[staff_id], #ram用户uid
name=FROM_diedai[“name”], #迭代名称
space_identifier=identifier, #项目ID
start_date=FROM_diedai[“start_date”], #迭代开始时间
end_date=FROM_diedai[“end_date”] #迭代结束时间
)
runtime = util_models.RuntimeOptions()
headers = {}
print(client.create_sprint_with_options(organization_id, create_sprint_request, headers, runtime))if __name__ == ‘__main__’:
# 导入代码组
FROMListRepositoryGroups_list=ast.literal_eval(input(“请输入源账号导出的代码组列表：”))
for RepositoryGroup in FROMListRepositoryGroups_list:
Sample.CreateRepositoryGroupmain([organization_id,RepositoryGroup[“name”],RepositoryGroup[“path”],RepositoryGroup[“visibility_level”],namespaceId,RepositoryGroup[“description”]])# 获取源代码组ID与目标代码组ID的对应关系
TOListRepositoryGroups_list = Sample.ListRepositoryGroups([organization_id, namespaceId])
FROM_TOListRepositoryGroupID_dic = {}
for FROMListRepositoryGroup in FROMListRepositoryGroups_list:
for TOListRepositoryGroup in TOListRepositoryGroups_list:
if FROMListRepositoryGroup[“name”] == TOListRepositoryGroup[“name”]:
FROM_TOListRepositoryGroupID_dic[FROMListRepositoryGroup[“id”]] = TOListRepositoryGroup[“id”]
FROMparent_id=ast.literal_eval(input(“请输入源账号的parent_id，也就是namespace_id：”))
FROM_TOListRepositoryGroupID_dic[FROMparent_id]=int(namespaceId)
print(“源账号代码组ID与目标账号代码组ID的对应关系:”+str(FROM_TOListRepositoryGroupID_dic))#导入代码仓库
FROMrepository_list=ast.literal_eval(input(“请输入源账号导出的代码仓库列表：”))
for FROMrepository in FROMrepository_list:
Sample.CreateRepositorymain([organization_id, FROMrepository[“name”], FROMrepository[“path”],FROM_TOListRepositoryGroupID_dic[FROMrepository[“namespace_id”]], FROMrepository[“description”],FROMrepository[“visibility_level”], FROMrepository[“import_url”], import_account, import_token])# 导入迭代
while True:
projects_info = Sample.ListProjectsmain([organization_id, ])
print(“项目名称和项目ID的对应关系:”+str(projects_info))
identifier = input(“请输入要导入的迭代是哪个项目的ID(不需要导出请输入no)：”)
if identifier==”no”:
break
print(“用户ID：{用户A:用户A的RAM账号UID,用户B:用户B的RAM账号UID,用户C:用户C的RAM账号UID}”)
print(“项目与负责人的对应关系:{‘项目A’:’负责人A’,’项目B’:’负责人B’，’项目C’:’负责人C’}”)
staff_id = input(“请输入要导入迭代负责人的RAM账号UID：”)
FROM_diedai_list = ast.literal_eval(input(“请输入要导入的迭代内容列表：”))
for FROM_diedai in FROM_diedai_list:
Sample.CreateSprintmain([organization_id, identifier, FROM_diedai, staff_id])总结
为了确保业务连续性和数据完整性，针对源阿里云账号即将停用的情况，我们完成了云效（DevOps平台）的数据迁移工作。由于云效无法直接通过实例迁移至目标账号，我们采取了数据导出与导入的方式，确保所有项目、流水线配置及代码仓库等数据完整无误地迁移到目标账号下。至此，平稳顺利的完成此次迁移。
云和安全管理服务专家
